• LED BACKLIGHT

  Heron backlight products include automotive LED backlights, industrial LED backlights, etc.

• LED

  Heron LED products include MINI LED, EMC LEDs, TOP LEDs, CHIP LEDs, Butterfly LEDs, etc.

• OEM/ODM

  Heron has advanced SMT equipment.The part in minimum pitch 0.35mm and the

• 車載 LED BACKLIGHT

• 工控LED BACKLIGHT

• 黑白屏 LED BACKLIGHT

• 光效/氛圍LED BACKLIGHT

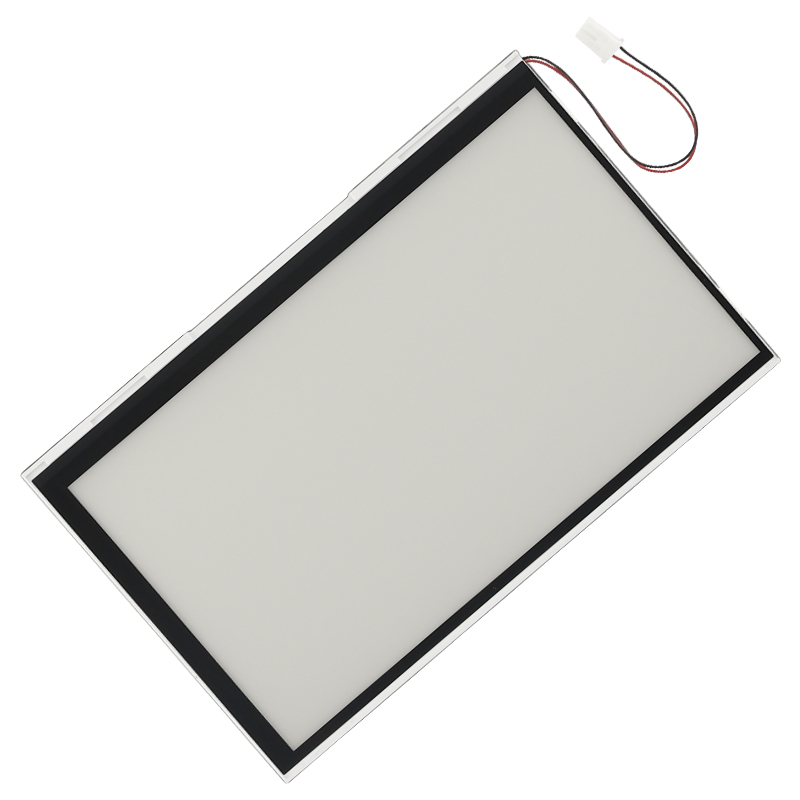

• Item No.10.1寸

  Size (mm)228.66*148.3*4.35

  Working voltage (V) 16.2-20.3

  Working current (mA)360

  Brightness (mcd) 21500

  Chromatic coordinatesX:0.29-0.35/Y:0.29-0.35

  Wavelength (nm)

  Uniformity (≥%)80

  Working temperature (℃)-30-+80

  Application areasDisplay of Industrial Equipment


• Item No.10.1寸

  Size (mm)229.76*154.21*6.10

  Working voltage (V) 24V(typ)-27.6V(max)

  Working current (mA)180

  Brightness (mcd) 9000

  Chromatic coordinatesX:0.265-0.33/Y:0.26-0.345

  Wavelength (nm)

  Uniformity (≥%)80

  Working temperature (℃)-20+80

  Application areasDisplay of communication equipment

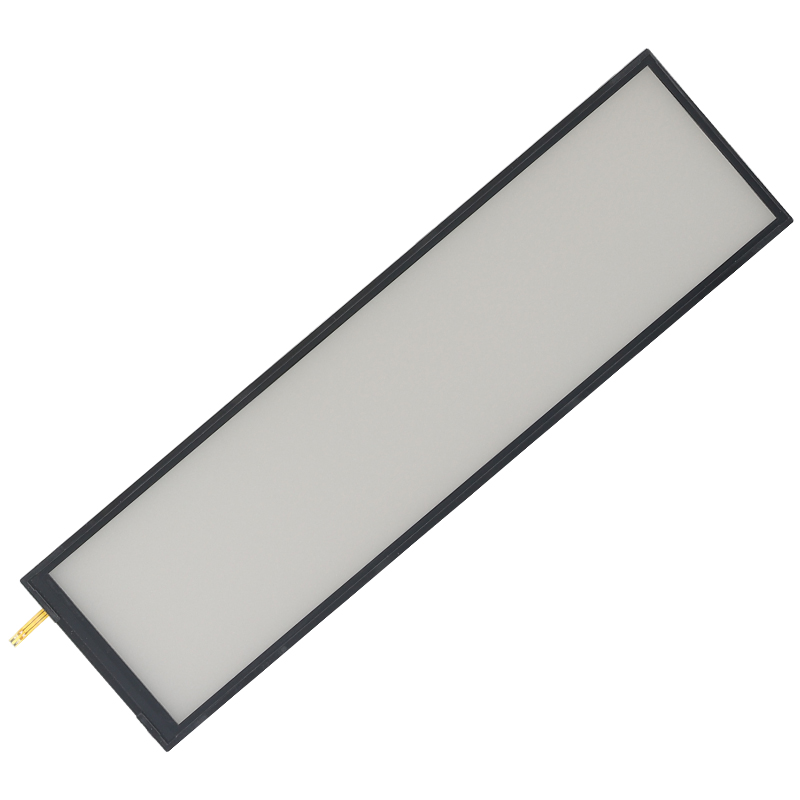

• Item No.8.8寸

  Size (mm)64.1*231.2*4.98

  Working voltage (V) 13.0-16.5

  Working current (mA)180

  Brightness (mcd) 13000

  Chromatic coordinatesX:0.27-0.33/Y:0.28-0.34

  Wavelength (nm)

  Uniformity (≥%)80

  Working temperature (℃)-30-+85

  Application areasGame console display screen

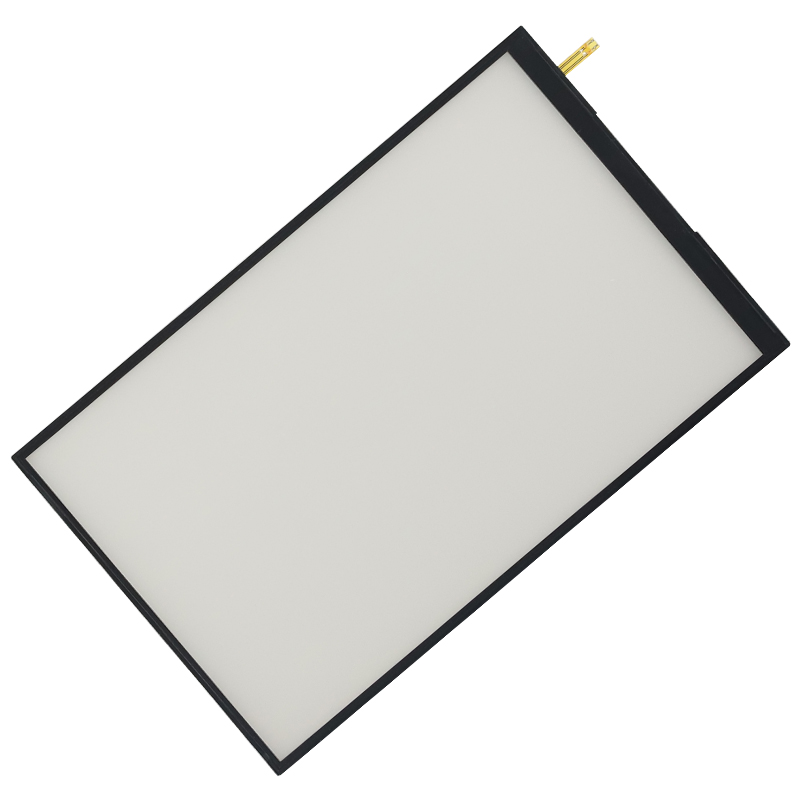

• Item No.8.0寸

  Size (mm)184.21L*114.8W*4.5T

  Working voltage (V) 8.1-9.9

  Working current (mA)400

  Brightness (mcd) 15120

  Chromatic coordinatesX:0.27-0.33/Y:0.27-0.33

  Wavelength (nm)

  Uniformity (≥%)80

  Working temperature (℃)-20 ~ +70

  Application areasIndustrial control, new-energy display, etc.

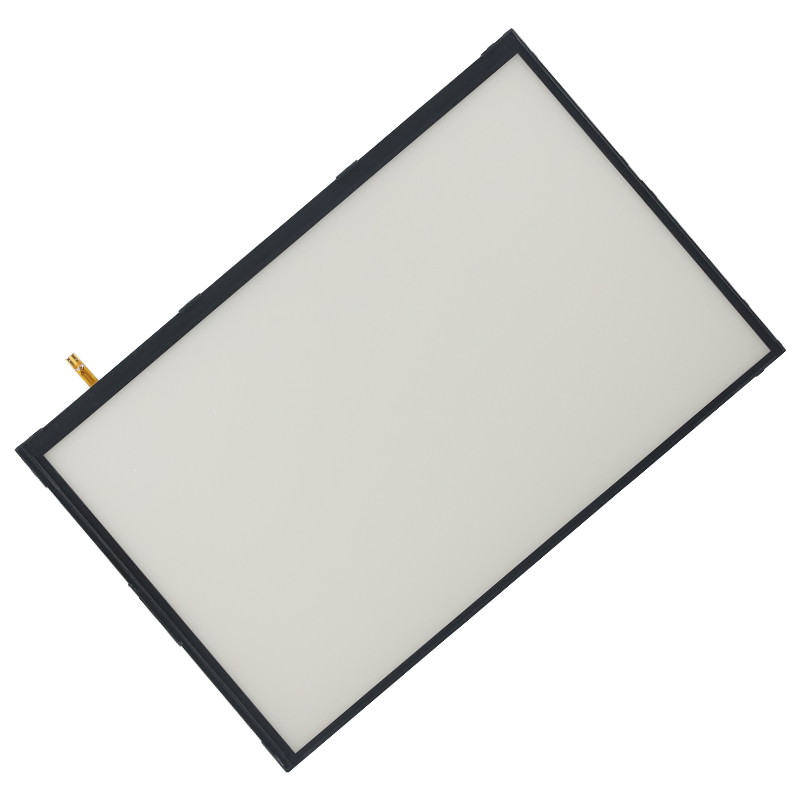

• Item No.8.0寸

  Size (mm)114.5*184.0*2.43

  Working voltage (V) 18.9-23.8

  Working current (mA)60

  Brightness (mcd) 7500

  Chromatic coordinatesX:0.27-0.31/Y:0.28-0.32

  Wavelength (nm)

  Uniformity (≥%)80

  Working temperature (℃)-20-+70

  Application areasTablet and commercial display.

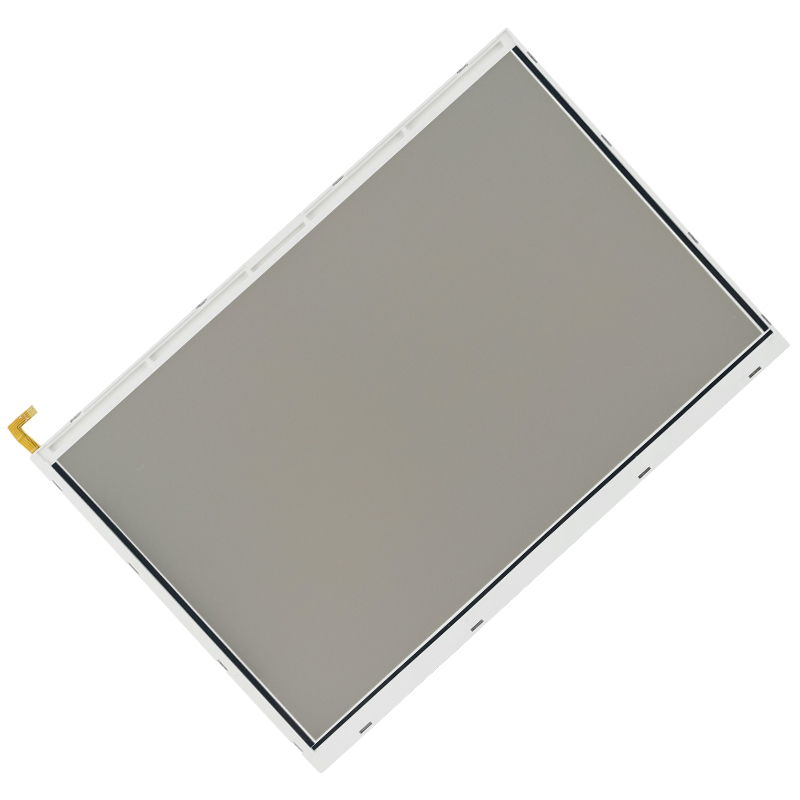

• Item No.7.0寸

  Size (mm)164.2*103.2*3.1

  Working voltage (V) 8.1-10.2

  Working current (mA)180

  Brightness (mcd) 10000

  Chromatic coordinatesX:0.275-0.325/Y:0.295-0.345

  Wavelength (nm)

  Uniformity (≥%)75

  Working temperature (℃)-20-+70

  Application areasDisplay of Industrial Equipment



Note: Product pictures are for reference only, product size, luminous color, luminous brightness, etc. can be customized on request
